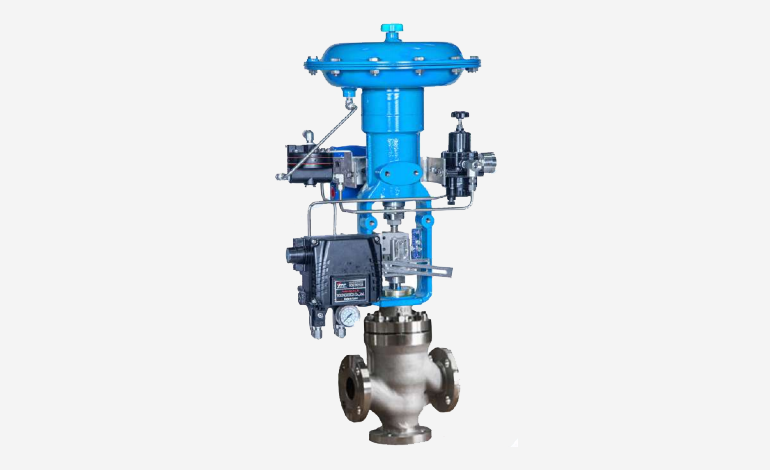

Three way top skirt guided
Three-way top & skirt guided
This double seated valve is featured by rigid top guiding of the plug. The additional skirt guiding and Flow to open direction in either port provides stable control of the valve in dynamic conditions. Configuration is available for Combining and Diverting applications.
- TRIM: Skirt guided, Pressure Balanced
- Valve Size: from 1” to 18” and wide range Cvs are available.
- Cv: Standard and wide range of Trims are available for handling Cv from 0.1 to 640, depending on valve size.
- Pressure ratings: ASME Pressure Class ratings 150 to 2500 and equivalent ratings in PN. Valves to suit other National and International standard pressure ratings are available on request.
- Seat leakage:Standard is Class II as per IEC 534-4 and ANSI-FCI 70.2. Class IV is available on request
- Metallurgy: Body & bonnet; Carbon Steel, Alloy Steel, Stainless Steel, Chrome Mb Steel, Duplex and Super Duplex Stainless Steel Other Alloys.
- Trims: Stainless steel, duplex stainless steel and other special alloys. Standard and hard-faced trims based on applications
- Bonnet: Plain, extended, bellows type
- Packing: Standard packing and Low emission packing
- End Connection: Flanged, Butt/Socket welded and screwed end
- NACE: Compliance to NACE Standard MR 0175 on request
- Testing: As per ASME B16.34
- NDT: RT, MPI, DP on request
